Modular Storage
Krisry's Modular Storage products include; Twist Locks, Corner Fittings, Horizontal and Vertical Interconnnectors, Base Mounts such as the KRY45 MP. “D” Rings and Brackets, Bail Bars and Bearingless Rollers.
Dovetail Lock with Mounting Plate
KRY45 MP
Load Rating: 2,000 lbs
Type: Fixed
Size: 10” x 3”
Wheel Material: Phenolic Rubber
-
Our custom made twist lock body and stem offer maximum efficiency and strength
-
Cast, forged & welde
-
Dovetail type twistlock; 45-degree
-
Proof tested in tension to 250KN
-
Proof tested in shear to 210KN
-
Minimum Breaking Strength (MBS) in tension at 500KN
-
Minimum Breaking Strength (MBS) in shear at 420KN
-
Weight: 14.8 lbs/6.7 kg plus Baseplate weight
-
Download Technic
-
d construction ensures maximum strength and durability
-
Heavy-duty wheel and yoke bearings for trouble-free operation
-
Right hand and left hand options available.
Interconnector
BLR1212
Designed and developed to connect military tricons and quadcons into a single unit.
Also used for connecting two 10′ tank containers into a single 20′ unit.
-
Ease of operation
-
Proven in-service use
-
Approved by US Naval Civil Engineering Laboratory
-
Can be used in the end wall aperture of lower corner fittings, or the side wall apertures of upper and lower corner fittings.
-
Weight: 12.6 lbs/5.7 kg
End Aperture
Screw Lock Down
BLR 4322
Load Rating: 3,000 lbs
Type: Swivel with Break
Size: 10” x 3”
Wheel Material: Poly/Steel
-
Our custom made twist lock body and stem offer maximum efficiency and strength
-
Cast, forged & welded construction ensures maximum strength and durability
-
Heavy-duty wheel and yoke bearings for trouble-free operation
-
Fitted with a wheel brake for added safety
10" x 3" Poly/Steel Wheel
KRY 3000
Load Rating: 3000
Type: Fixed
Size: 10 x 3
Wheel Material: Poly/Steel
Our custom made twist lock body and stem offer maximum efficiency and strength
Cast, forged & welded construction ensures maximum strength and durability
Heavy-duty wheel and yoke bearings for trouble-free operation
.jpg)

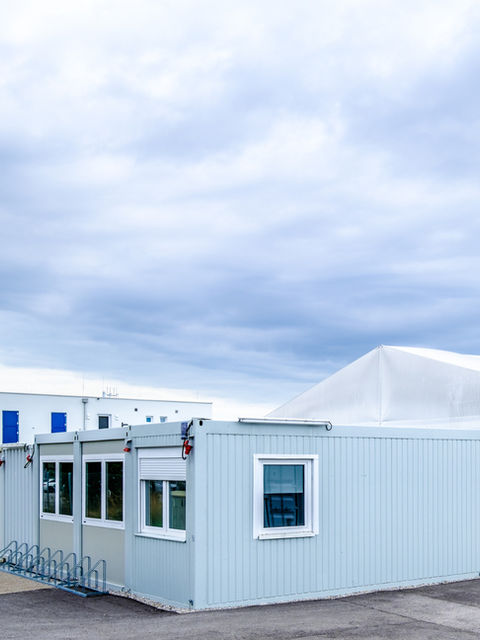

Our projects are used on modular containers in the following ways:
-
tiny homes
-
storage containers
-
and site security containers
Our Design Features
-
Our specifically designed one-piece cast steel twist lock body is engineered so that the body walls line up directly with the side walls of the ISO corner casting ensuring the loads are transferred directly in line.
-
The lock itself has an over-sized forged “High Tensile Steel” stem. The stem is manually turned to 90 degrees and is screwed down tightly with the heavy duty hand nut, leaving zero vertical clearance between the ISO corner block and the twist lock assembly. Although we call them “hand nuts” we encourage you to take a hammer to them – they are built to be robust enough to allow you to put as much torque as you can into them.
-
Vibration will never loosen the twist lock. The high safety level built into the caster design means that the bolt and lock nut is tightened at 90 degrees to the hand nut, so there is no risk of vibration damaging the clamp.
